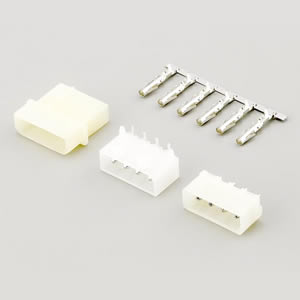

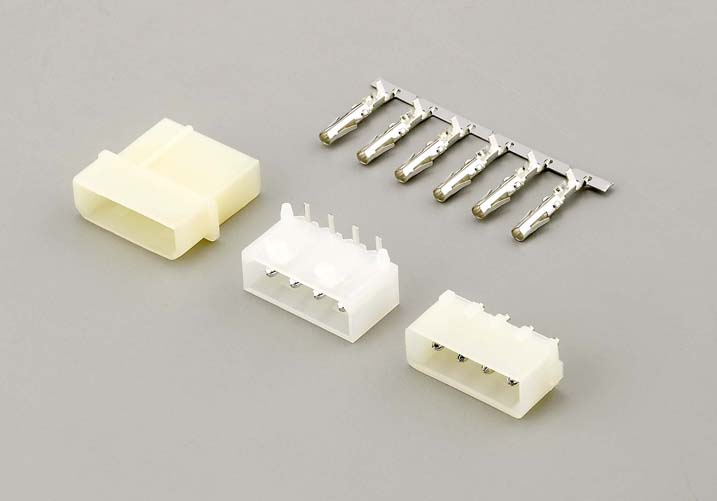

• 4236A-WS-02T-B Wire to Board Power Connector

    4236A-WS-02T-B Wire to Board Power Connector

    Specifications:

    Current Rating : 5A AC/DC
    Withstanding Voltage : 1500V AC/ min.
    Insulation Resistance : 1000 MΩ/ min.
    Temperature Range : -25℃~+85℃
    Contact Resistance : Initial Values/10 mΩ/ max. After Environmental Testing/20 mΩ max.
    Contact Material : Brass, Tin plated
    Insulator Material : Phenolic Bakelite(94V-0)

    PDF
