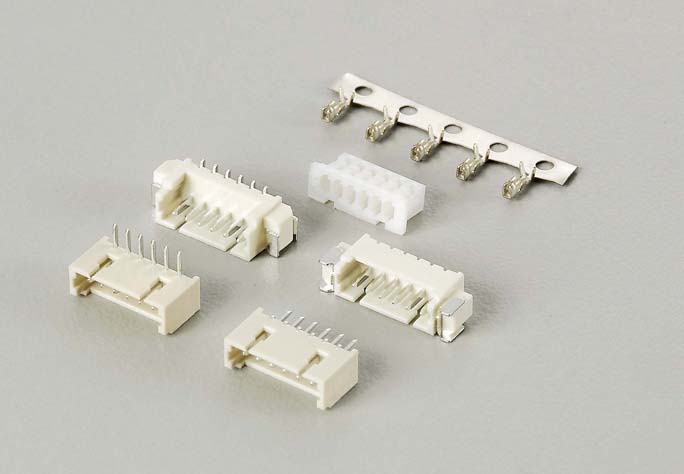

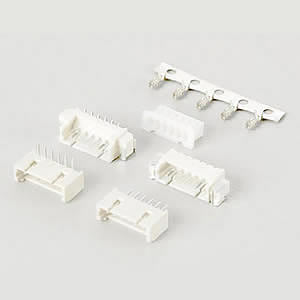

• 125C-T Wire to Board Connector

    125C-T Wire to Board Connector

    Specifications:

    Current Rating : 1 AC,DC
    Voltage Rating : 100V AC,DC
    Operating Temperature: -25℃ ~ +85℃
    Insulation Resistance: 5000 MΩ min.
    Dielectric Withstanding : 500V AC min.
    Contact Resistance: 20 mΩ max.
    Material: Phosphor Bronze, Tin plated
    Wire Range : 28 to 32AWG
