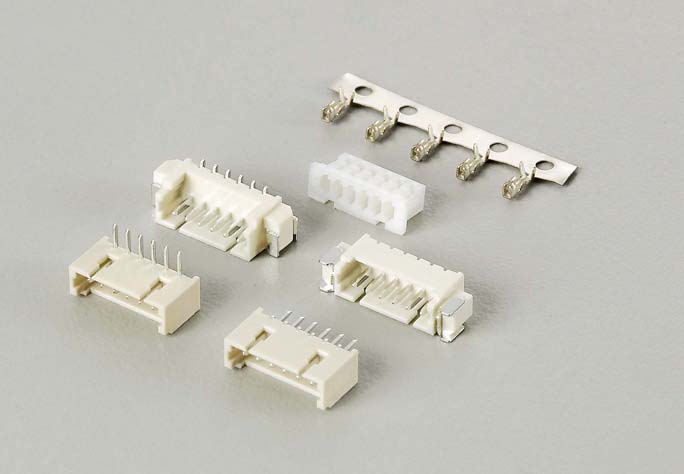

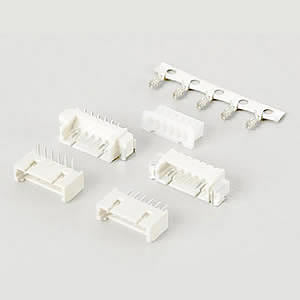

• 125C-WR-xxT Wire to Board Connector
    125C-WR-xxT Wire to Board Connector

    125C-WR-xxT Wire to Board Connector

    Specifications:

    Current & Voltage Rating : 1A & 125Vac max.
    Insulation Resistance: 100 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding: AC 250V
    Operating Temperature: -25℃ ~ +85℃
    Contact Material : Brass
    Insulation Material: Nylon 46, UL 94v-0
    Finish : Tin plated over Nickel
    Packing : Tray
