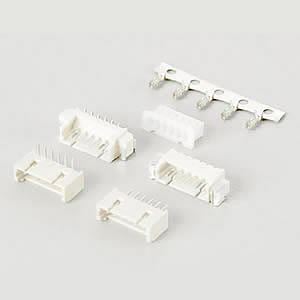

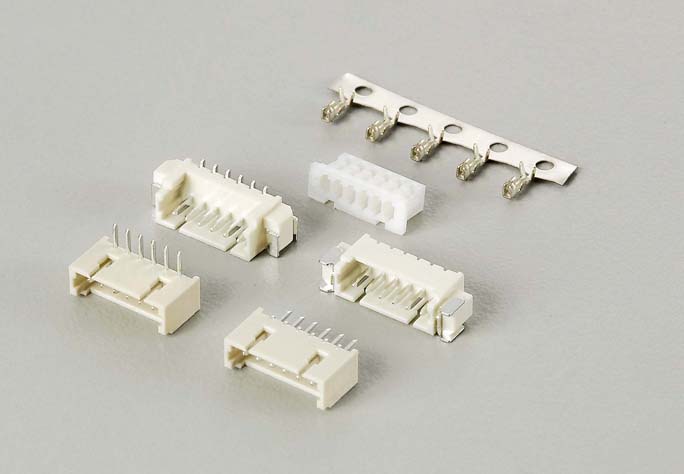

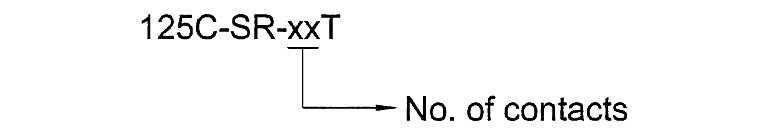

125C-SR-xxT Wire to Board Connector

Specifications:

Current & Voltage Rating : 1A & 125Vac max.
Insulation Resistance: 100 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding: AC 250V
Operating Temperature: -25℃ ~ +85℃
Contact Material : Phosphor Bronze
Pad Material : Brass
Insulation Material: Nylon 46, UL 94v-0(White)
Finish : Tin plated over Nickel
Packing : Tube
