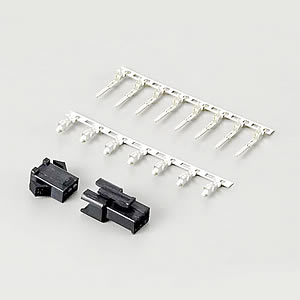

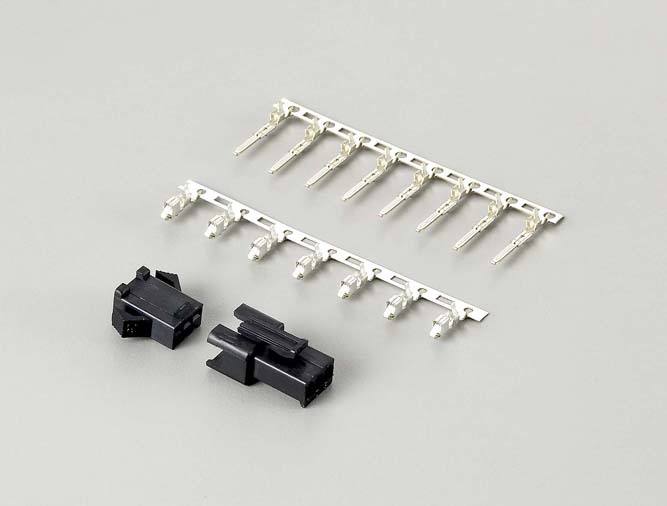

4250-TM-xx Wire to Wire Power Connector

Specifications:

Current Rating : 3A AC/DC
Voltage Rating : 250V AC/DC
Contact Resistance: 20 mΩ max.
Insulation Resistance : 1000 MΩ/ min.
Withstanding Voltage : AC 800V
Temperature Range : -25℃~+85℃
Applicable Wire : AWG #22 to #28
Insulation O.D. : 1.70mm max.
Material : Brass

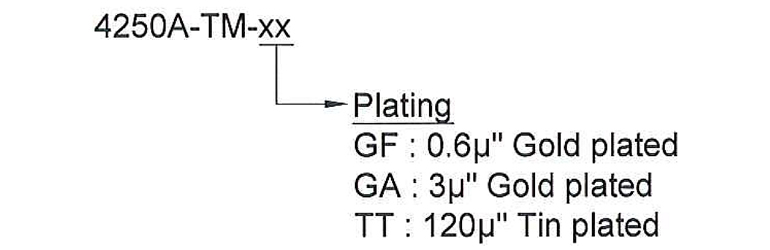

Finish See order information
Q'ty 7,000 pcs/reel
Accepts :4250A-xxF Series Housing
