• 254P-1-xxP Dip Plug

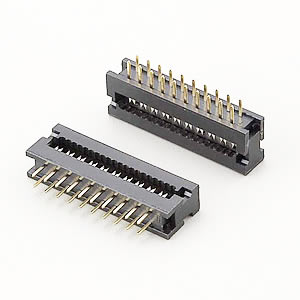

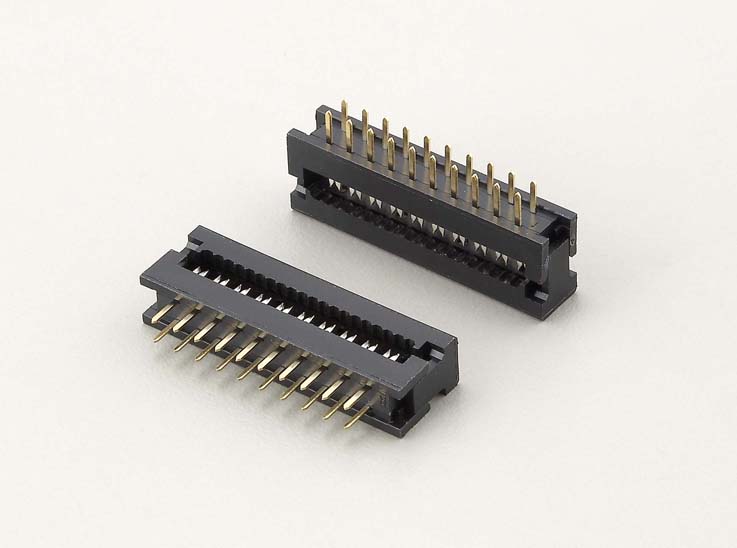

    254P-1-xxP Dip Plug

    Specifications:

    Insulator: P.B.T. 30%Glass Fiber, UL94V-0
    Contact Material: Brass or Phosphor Bronze. Gold Flash Over Nickel
    Current Rating : 1AMP.
    Insulation Resistance: 1000m Ω Min.
    Dielectric Withstanding: 500VAC
    Operating Temperature: -55℃ ~ +105℃

    PDF

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series 254P-1
Contacts / Demension (mm)
See Catalog
